Effective Dose of CT-Guided Epidural and Periradicular Injections of the Lumbar Spine: A Retrospective Study



Juraj Artner*, Friederike Lattig, Heiko Reichel, Balkan Cakir
Department of Orthopaedic Surgery, University of Ulm, RKU, Germany


Article Metrics

CrossRef Citations:
11
Total Statistics:

Full-Text HTML Views: 1223
Abstract HTML Views: 382
PDF Downloads: 254
Total Views/Downloads: 1859
Unique Statistics:

Full-Text HTML Views: 676
Abstract HTML Views: 267
PDF Downloads: 188
Total Views/Downloads: 1131



Creative Commons License
© Artner et al.; Licensee Bentham Open.

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Department of Orthopaedic Surgery, University of Ulm, RKU, Oberer Eselsberg 45, 89081 Ulm, Germany; Tel: 0049-731-177-5111; E-mail: j.artner@gmail.com


Abstract

Spinal injection procedures can be performed blindly or, more accurately, with fluoroscopic or computed tomography (CT) guidance. Radiographic guidance for selective nerve root blocks and epidural injections allows an accurate needle placement, reduces the procedure time and is more secure for the patient, especially in patients with marked degenerative changes and scoliosis, resulting in a narrowing of the interlaminar space. Limiting factors remain the availability of scanners and the radiation dose. Interventional CT scan protocols in axial CT-acquisition mode for epidural and periradicular injections help to limit the radiation dose without a significant decrease of image quality. The purpose of this retrospective study was to analyze the effective radiation dosage patients are exposed during CT-guided epidural lumbar and periradicular injections. A total amount of n=1870 datasets from 18 months were analyzed after multiplying the dose length product with conversion factor k for each lumbar segment. For lumbar epidural injections (n=1286), a mean effective dose of 1.34 mSv (CI 95%, 1.30-1.38), for periradicular injections (n=584) a mean effective dose of 1.38 mSv (CI 95%, 1.32-1.44) were calculated.

Keywords:: Computed tomography, CT, guidance, epidural, perineural, periradicular, injections, spinal, interventions, radiation, dose.



INTRODUCTION

Computed tomography (CT) is a well-accepted tool for the precise needle placement in many spinal interventions. The mean benefits are accuracy, reduction of complication rates and patient comfort due to the minimal invasive procedure. Despite these benefits, the radiation dose still remains a serious concern, contributing to a controversial discussion between blind punctions and radiographic-guidance in Germany [1-3]. Because of the increasing amount of spinal disorders among the population, the need for conservative spinal interventions is increasing. In fact, due to reports of the Medicare population, the rate of epidural injections is rapidly growing [4].

MATERIAL AND METHODS

Datasets from 1870 CT-guided lumbar injections between 09.11.2009 and 09.05.2011 were analyzed for the radiation dose according to the type of procedure and segment, making a total amount of 1286 epidural lumbar injections and 584 lumbar nerve blocks (lumbar epidural injections n=932/yr, lumbar nerve blocks n=387/yr). For CT-guided interventions we use the SOMATOM Emotion scanner (syngo CT 2009E, 16-slice solution, Siemens Medical Solutions AG, Erlangen, Germany) with interventional protocol (axial CT-acquisition, topogram: 120 mAs, 130 kV, scan: 80 mAs, 130 kV, intervention: 50 mAs, 130 kV) to reduce the radiation exposure. The injection is provided by experienced orthopaedic surgeons, specialized in the conservative therapy of spinal disorders using the techniques described by Wagner [5, 6]. A total amount of 1870 patients undergoing CT-guided spinal injections were included into the retrospective data analysis study. Effective dose was calculated by multiplying dose-length product (DLP) and conversion factor (k factor) [7, 8]. For each lumbar segment, descriptive statistical analysis was performed with SPSS Statistics 17.0, IBM, Armonk, New York 10504, 2008.

RESULTS

A total amount of 1286 epidural lumbar injections and 584 lumbar nerve blocks were performed with CT-guidance. Per patient, there were 3-6 scans needed for the procedure, with an average intervention time of 5-10 minutes (positioning, unclothing, desinfection, preparation, topogramm, intervention). There were no complications during the interventions. For epidural lumbar injections (n=1286), mean effective dose (E) of 1.34 mSv (CI 95%, 1.30-1.38) was calculated, for lumbar nerve blocks (n=584), mean effective dose was 1.38 mSv (CI 95%, 1.32-1.44) (see Fig. 1 and Table 1).

Table 1.

Segmental Distribution of Effective Doses in Epidural und Periradicular Lumbar Injections


Procedure Number of Injections n Mean Effective Dose mSv Confidence Interval 95% Median eff. Dose mSv Standard Deviation
EDU L 1/2 9 1.04 0.62-1.46 0.87 0.55
EDU L 2/3 142 1.31 1.21-1.40 1.14 0.57
EDU L 3/4 295 1.36 1.28-1.45 1.11 0.74
EDU L 4/5 563 1.37 1.30-1.44 1.13 0.80
EDU L 5/s1 277 1.29 1.21-1.38 1.13 0.70
Radix L1 0 - - - -
Radix L2 22 1.25 1.05-1.45 1.17 0.46
Radix L3 44 1.3 1.11-1.48 1.14 0.61
Radix L4 131 1.27 1.18-1.36 1.17 0.50
Radix L5 322 1.46 1.37-1.54 1.22 0.81
Radix S1 65 1.33 1.17-1.50 1.11 0.68
Fig. (1).

Effective Dose in mSv in lumbar epidural (left) and periradicular (right) injections.


DISCUSSION

There is a controversy regarding the optimal imaging-technique for spinal injection procedures in the international literature. While some authors prefer blind injections, there are also interventionalists using sonography-, MRI-, fluoroscopy- or CT-guidance for a safe epidural or periradicular needle placement [3, 9-12].

The CT-guided technique is described as fast, safe, and highly accurate in proving appropriate needle placement in epidural injections [8] (see Fig. 2). For periradicular injections, CT- guided injections are described to be superior to fluoroscopy-guided for both the visualization and a longer-lasting effect [10]. Despite the accuracy, the patient`s and physician`s exposure to radiation in CT –guided interventions remains a serious concern [13].

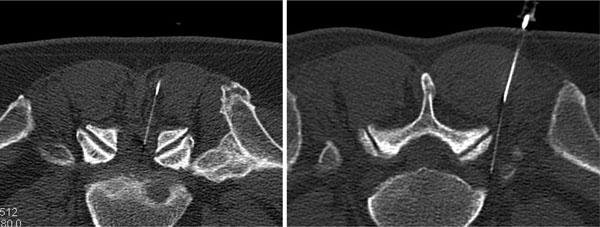

Fig. (2).

CT-guided epidural injection at the level L5/S1 (left image) and periradicular injection near the L5-nerve root (right image) in the standard interventional protocol (axial CT-acquisition).


There are two possible types of radiation effects on human body: the so called deterministic effects above a threshold dosage (like erythema, tissue necrosis, epilation, hematopoietic or gastrointestinal damage) and stochastic effects (like genetic effects and cancer induction), which do not have a threshold dose [14]. Clinical symptoms of radiation exposure start to appear at doses more than 0.5 Gy. The most radiosensitive tissues are haematopoietic and lymphatic systems, responding already to single exposures as small as 0.5-1 Gy. Mitotic cell division is delayed in doses greater than 0.5 Gy and at more than 3 Gy, the mitotic rate is irreversibly arrested [15]. Radiation dermatitis is induced above the 2000 mGy threshold, while radiation-induced skin changes were also reported at levels of 1000 mGy [16]. The physicians should be concerned about both effects in interventions using ionizing radiation. While working under the threshold doses of deterministic effects prevents these damages, the cumulative stochastic effects of repetitive exposure to low dose radiation are random, may take decades to manifest and can only be simulated. Cancer induction is the most important stochastic effect, estimated at absorbed doses of less than 1 Gy [17]. Leukemia seems to be associated with chronic radiation exposures with doses as low as 50-100 cGy, with a linear correlation between dose and incidence in doses between 100-500 cGy [15]. Other stochastic effects associated with exposure to ionizing radiation are thyroid, bone, lung and other cancers.

There is an amount of radiation exposition doses in spinal CT- examinations and interventions described in literature, which vary significantly between and within institutions, depending on the settings, the interventionalist and the preferred technique [18, 19]. Leng et al. compared the effective doses using the k- conversion factor for the helical mode and Monte Carlo organ dose coefficients for intermittent mode for interventional CT procedures [20]. For injections, they described an effective dose of 9.1 ± 5.5 mSv. Carlson et al. described a median overall patient radiation dose of 738 mGy (corresponding to approx. 11.07 mSv) for CT-guided procedures like aspirations, biopsies and catheter drainages [21]. Shepherd et al. reported a mean total DLP of 199 ± 101 mGy for spinal injection procedures after changing CT acquisitions from helical to axial mode [22], corresponding to a mean effective radiation dose of 2.99 mSv (for lumbar injections only= 3.3 mSv). Schmid et al. compared the radiation doses in CT- and fluoroscopy-guided epidural injections using an Alderson Rando phantom at the lumbar segment L4/5 [23]. They described effective doses of 1.51 to 3.53 mSv (4-10 scans) for CT-guidance for standard protocols and 0.22 to 0.43 mSv (4-10 scans) for low dose protocols. For fluoroscopic guidance they described effective doses of 0.43 to 1.25 mSv (1-3 min) in continuous mode and less than 0.1 mSv for pulsed mode (1min, 3 pulses/sec). Hoang et al. calculated mean radiation doses of 0.85 mSv for lumbar epidural steroid injections using conventional fluroscopy-guidance and 3.35 mSv for CT-fluoroscopy guidance, when a full diagnostic lumbar scan was performed as a part of the procedure [24]. Depending on the tube current and energy settings there are also reports of CT-guided interventions, which lead to much higher radiation exposures, in some cases up to 830 mGy per procedure (corresponding to 12.45 mSv) [25]. Our measures correspond to radiation doses in Schmid`s study for standard interventional CT-protocols. Despite the fact that these doses are lower than doses mentioned in other studies and below the threshold of deterministic radiation effects mentioned above, one must be concerned about the cumulative stochastic effects of repetitive injection therapy.

To determine the risk of cancer induction in computed tomography examinations and interventions is not unproblematic. Based on phantom simulations for spinal computed tomography, Richards et al. calculated a relative risk ratio for inducing a cancer of 1:3200 for diagnostic scans of the whole lumbar spine in standard diagnostic protocol and 1:200000 for low dose protocol with an estimated effective dose of 0.1 mSv. Narrowing the area of interest to dorsal structures from L3-L5 (effective dose of 3.5 mSv) in standard protocol also reduced the risk to 1:5200 [26].

The cumulative radiation exposure of patients with spinal disorders undergoing CT examinations and interventions is underestimated. Despite the good image quality and efficacy of CT-guided lumbar procedures, the radiation dose reduction should be targeted in further studies. There is a wide range of possibilities how to minimize the radiation dose exposures in CT-guided interventions. Switching from helical to axial image acquisition, reducing the tube current, depending on patient`body habitus (AP diameter), tailoring the planning CT scan, narrowing the area of interest, as good as switching to CT-fluoroscopic navigation and reducing the scatter exposure (use of lead drape and radiation protection gloves) are described in literature [13, 22, 23]. Since 2011 we develop in our department low dose protocols which help to reduce the radiation exposure with an acceptable image quality according to the ALARA-principle (as low as reasonably achievable). Fig. (3) demonstrates an example of CT-guided periradicular injection comparing standard interventional protocol and low-dose protocol, where a dose reduction of 85% could be achieved (see Fig. 3).

Fig. (3).

Comparison of standard interventional protocol (left image) and low-dose protocol (right image) in CT-guided L5-nerve root block. Despite the reduced contrast in the low-dose image, the needle (29 gauge, most thin needle caliber) is still visible as good as the bony landmarks of the neuroforamen. A dose reduction of 85% was achieved.


CONCLUSION

The radiation exposure in CT-guided spinal injections is underestimated. Because of the cumulative effect of repetitive spinal injections under CT-guidance in patients with spinal disorders and the large variety of used radiation doses between the performing interventionalists a reduction of radiation dose and standardization of CT-protocols should be targeted in further studies.

ACKNOWLEDGEMENT

Declared none.

CONFLICT OF INTEREST

The authors confirm that this article content has no conflicts of interest.

ABBREVIATIONS

CT  =  Computed tomography
DLP  =  Dose length product
Gy  =  Gray
Sv  =  Sievert
CI  =  Confidence interval
DLP  =  Dose length product
EDU  =  Epidural injection (to determine segment)
Radix  =  Nerve root
mAs  =  Milliampereseconds
kV  =  Kilovolt
