A Case of Infrapatellar Fat Pad Ganglion of the Knee



Tsuneari Takahashi1, 2, *, Masashi Kimura2, Takashi Ohsawa3, Naoki Yamaguchi4, Katsushi Takeshita1
1 Department of Orthopedic Surgery, Jichi Medical University, Shimotsuke, Japan
2 Gunma Sports Medicine Research Center, Zenshukai Hospital, Maebashi, Japan
3 Department of Orthopedic Surgery, Faculty of Medicine, Gunma University, Maebashi, Japan
4 The Center for Graduate Medical Education, Jichi Medical University Hospital, Shimotsuke, Japan


Article Metrics

CrossRef Citations:
0
Total Statistics:

Full-Text HTML Views: 380
Abstract HTML Views: 276
PDF Downloads: 573
ePub Downloads: 585
Total Views/Downloads: 1814
Unique Statistics:

Full-Text HTML Views: 251
Abstract HTML Views: 129
PDF Downloads: 110
ePub Downloads: 86
Total Views/Downloads: 576



© 2017 Takahashi et al.

open-access license: This is an open access article distributed under the terms of the Creative Commons Attribution 4.0 International Public License (CC-BY 4.0), a copy of which is available at: https://creativecommons.org/licenses/by/4.0/legalcode. This license permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

* Address correspondence to this author at the Department of Orthopedic Surgery, Jichi Medical University, 3311-1 Yakushiji, Shimotsuke, Tochigi, Japan; Tel: +81-28-544-2111; Fax: +81-28-544-1301; E-mail: tsuneari9@jichi.ac.jp


Abstract

Introduction:

A ganglion cyst can induce symptoms around the knee and should be considered as an intra-articular mass in differential diagnosis.

Case Presentation:

A 22-year-old female presented with a persistent medial knee joint pain in her left knee for 2 years. There was soft tissue swelling on the anteromedial aspect of the infrapatellar region on her left knee. Lachman and McMurray tests were negative. MRI showed a multilobular cyst in the infrapatellar fat pad with T1 low intensity and T2 STIR high intensity. The cyst was not attached to either meniscus. ACL and PCL looked normal.

During surgery, the cyst was found to arise from the intra-patellar fat pad and was not attached to the menisci or synovium. The cyst was completely resected.

Histological findings showed a multilobular cyst with a glassy fibrous tissue wall and clear jelly-like consistency, confirming the diagnosis of a ganglion. The patient recovered asymptomatically and has been without recurrence 7 years postoperatively.

Conclusion:

Differential diagnoses of an infrapatellar swelling are a meniscal cyst, synovial cyst, or ganglion. Most cases of cysts around the knee generate from fluid collection through meniscal tears. A ganglion cyst is a synovium-lined structure and is common around the wrist joint, but rare in the knee joint. A ganglion cyst in the knee joint often arises from ACL or PCL, but rarely arises from the infrapatellar fat pad. A ganglion cyst is one of the differential diagnoses of parameniscal cysts around the knee. We recommended an open resection with arthroscopic examination.

Keywords: Knee, Meniscus, Ganglion, Arthroscopy, Infrapatellar fat pad.



1. INTRODUCTION

Cysts around the knee joint are common. Most such cases involve fluid collection through meniscal tears [1]. Sometimes, a parameniscal cyst induces symptoms around the knee, such as pain or sense of incongruity. A ganglion cyst also induces symptoms around the knee and should be considered as an intra-articular mass in a differential diagnosis.

2. CASE PRESENTATION

A 22-year-old female presented with persistent medial knee joint pain in her left knee for 2 years. She had no history of trauma to her left knee. On first examination at our department, she looked healthy but complained of tenderness in the medial knee joint. There was soft tissue swelling on the anteromedial aspect of the infrapatellar region on her left knee. She had a full range of motion and other physical findings, such as the Lachman and McMurray tests, were negative. An X-Ray showed no bony changes induced by osteoarthritis. MRI showed a multilobular cyst in the infrapatellar fat pad with T1 low intensity and T2 STIR high intensity (Fig. 1). The cyst was not attached to either menisci. ACL and PCL looked normal.

Fig. (1). MRI showed a multilobular cyst in the infrapatellar fat pad with T1 low intensity and T2 STIR high intensity. The cyst was not attached to either menisci.

3. OPERATIVE FINDINGS

During surgery, arthroscopy showed no tears in either menisci, ACL or PCL, nor was the cyst found. Because of the arthroscopic findings, we made a 5-cm lateral parapatellar incision to approach the cyst (Fig. 2). The cyst arose from the intra-patellar fat pad and was not attached to menisci or synovium. The cyst was completely resected; its size was 5.5 × 2.0 × 1.0 cm (Fig. 3). After resection, the wound was closed in layers.

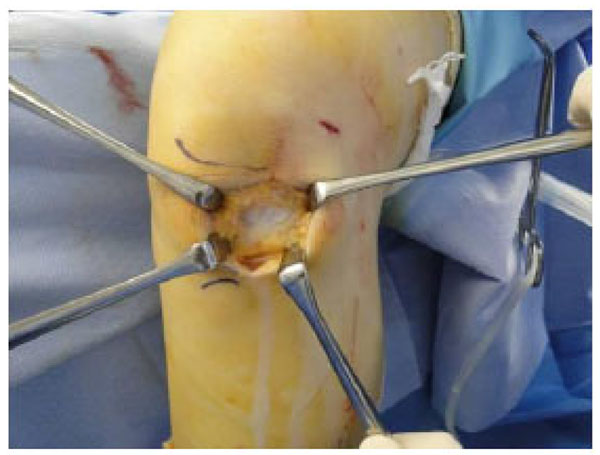

Fig. (2). We made a 5-cm lateral parapatellar incision to approach the cyst, which was successfully resected.

4. HISTOLOGICAL EVALUATION

Histological findings showed a multilobular cyst with a glassy fibrous tissue wall and clear jelly-like consistency. There were no coverage cells inside the wall, which confirmed the diagnosis of a ganglion (Fig. 4). The patient recovered asymptomatically and has been without recurrence 7 years postoperatively.

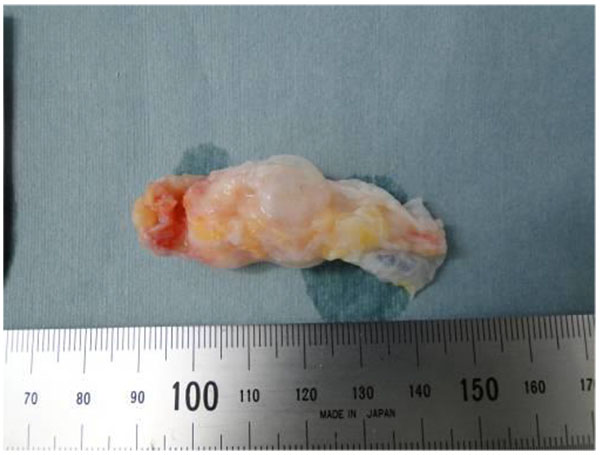

Fig. (3). The multilobular cyst, which had a size of 5.5 × 2.0 × 1.0 cm, was completely resected.

Fig. (4). HE staining showed a multilobular cyst with glassy fibrous tissue wall and clear jelly-like consistency. There were no coverage cells inside the wall and these findings confirmed the diagnosis of a ganglion. The length of the bar is 1.0 mm.

5. DISCUSSION

Fat pad of the knee is affected by a variety of tumours and tumour-like conditions [2]. Differential diagnoses of infrapatellar swelling are osteochondroma, localised pigmented villonodular synovitis, meniscal cyst, synovial cyst, or ganglion [3]. The commonest presenting symptom was anterior knee pain. We sometimes experience cysts around the knee, such as intrameniscal, parameniscal, or synovial cysts, and meniscocapsular separation [4]. Most cases of cysts around the knee are generated from fluid collection through meniscal tears. A ganglion cyst is a synovium-lined structure and is common around the wrist joint, but it is rare in the knee joint. A ganglion cyst in the knee joint often arises from ACL or PCL [5], but rarely arises from the infrapatellar fat pad. Sugiura et al. reported the ganglion cyst arising from the infrapatellar fat pad of 10-year-old boy [6]. Sloane et al. reported the case of 41-year-old female who presented with a gradually worsening anterior knee pain, swelling and inability to flex the knee. MRI revealed a large intra-articular cystic swelling anterior to ACL, extending into the infrapatellar fat pad [5]. In a study by Krudwig et al. [7], 76 cases of ganglion cysts were found in 8000 knee arthroscopic examinations. Most of them arose from ACL or PCL. In contrast, only three cases arose from the infrapatellar fat pad. Mine et al. [8] and Yilmaz et al. [9] have reported on cases of ganglion cysts in the infrapatellar fat pad of the knee. In their studies, the patient presented with swelling around the knee joint. Trompeter et al. reported on an acute locked knee induced by a ganglion cyst in the infrapatellar fat pad of the knee [10]. Schmitz et al. reported a case of a ganglion that had invaded the infrapatellar fat pad, but it was not the infrapatellar fat pad the ganglion had originated from but the medial meniscus [11]. MRI is an important modality for diagnosing ganglion cysts [12]. MRI findings are T1 low intensity and T2 high intensity for all lesions [13]. In case of ganglion cysts in the infrapatellar fat pad of the knee, it is difficult to reach the cyst arthroscopically although Yang et al. reported an endoscopic resection of a ganglion cyst in an infrapatellar fat pad extending into the subcutaneous layer [14]. Bisicchia et al. reported the recurrence of infrapatellar fat pad cysts after ultrasound-guided aspiration [15]. Saha et al. described that subcutaneous extension of infrapatellar fat pad ganglion may lead to incomplete arthroscopic resection and leaving behind the residual tissue which may cause recurrence [16]. Nikolopoulos et al. described that when there is a large ganglion, treatment should be an open and thorough resection [17]. Therefore, we should perform open surgery in case a ganglion cyst in the infrapatellar fat pad of the knee is suspected because there are no reports in the literature on recurrence following open resection [13].

CONCLUSION

We experienced a case of a ganglion cyst developed in the infrapatellar fat pad of the knee. The patient completely recovered after open resection without arthroscopic treatment. Ganglion cyst is one of the differential diagnoses of a parameniscal cyst around the knee. We recommend not an arthroscopic resection but an open resection with arthroscopic examination to avoid recurrence.

FINANCIAL DISCLOSURE

Nothing to declare.

FUNDING/SUPPORT

No.

ROLE OF SPONSORER

TT designed and wrote the case report. TT, TO and MK participated in the surgery. NY participated in design and revision of the data and manuscript. All authors read and approved the final manuscript.

ETHICS APPROVAL AND CONSENT TO PARTICIPATE

This article does not contain any studies with human participants or animals performed by any of the authors.

HUMAN AND ANIMAL RIGHTS

No Animals/Humans were used for studies that are base of this research.

CONSENT FOR PUBLICATION

Not applicable.

CONFLICT OF INTEREST

The authors declare no conflict of interest, financial or otherwise.

ACKNOWLEDGEMENTS

Written informed consent was obtained from the patient for publication of this report.

REFERENCES

[1] Cowden CH III, Barber FA. Meniscal cysts: treatment options and algorithm. J Knee Surg 2014; 27(2): 105-11.
[2] Dean BJ, Reed DW, Matthews JJ, et al. The management of solitary tumours of Hoffa’s fat pad. Knee 2011; 18(2): 67-70.
[3] Nouri H, Ben Hmida F, Ouertatani M, et al. Tumour-like lesions of the infrapatellar fat pad. Knee Surg Sports Traumatol Arthrosc 2010; 18(10): 1391-4.
[4] Mink JH, Deutsch AL. Magnetic resonance imaging of the knee. Clin Orthop Relat Res 1989; (244): 29-47.
[5] Sloane J, Gulati V, Penna S, Pastides P, Baghla DP. Large intra-articular anterior cruciate ligament ganglion cyst, presenting with inability to flex the knee. Case Rep Med 2010; 2010: 705919.
[6] Sugiura K, Suzue N, Matsuura T, et al. Ganglion cyst arising from the infrapatellar fat pad in a child. J Med Invest 2015; 62(3-4): 245-7.
[7] Krudwig WK, Schulte KK, Heinemann C. Intra-articular ganglion cysts of the knee joint: A report of 85 cases and review of the literature. Knee Surg Sports Traumatol Arthrosc 2004; 12(2): 123-9.
[8] Mine T, Ihara K, Tanaka H, et al. A giant ganglion cyst that developed in the infrapatellar fat and partly extended into the knee joint. Arthroscopy 2003; 19(5): E40.
[9] Yilmaz E, Karakurt L, Ozercan I, Ozdemir H. A ganglion cyst that developed from the infrapatellar fat pad of the knee. Arthroscopy 2004; 20(7): e65-8.
[10] Trompeter A, Servant C. Case report. An unusual cause of a patient presenting with an acutely locked knee: multiple benign fat pad cysts. Arch Orthop Trauma Surg 2009; 129(8): 1123-5.
[11] Schmitz MC, Schaefer B, Bruns J. A ganglion of the anterior horn of the medial meniscus invading the infrapatellar fat pad. Case report. Knee Surg Sports Traumatol Arthrosc 1996; 4(2): 97-9.
[12] Ghate SD, Deokar BN, Samant AV, Kale SP. Tumor like swellings arising from Hoffa’s fat pad: A report of three patients. Indian J Orthop 2012; 46(3): 364-8.
[13] Amin M, Torreggiani W, Sparkes J. Infrapatellar ganglion that developed from infrapatellar fat and had minimal intraarticular extension. Knee Surg Sports Traumatol Arthrosc 2008; 16(2): 179-81.
[14] Yang JH, Kim TS, Lim HC, et al. Endoscopic excision of a ganglion cyst in an infrapatellar fat pad extending into the subcutaneous layer. J Orthop Sci 2012; 17(5): 654-8.
[15] Bisicchia S, Savarese E. Infra-patellar fat pad cysts: a case report and review of the literature. Muscles Ligaments Tendons J 2013; 2(4): 305-8.
[16] Saha P, Bandyopadhyay U, Mukhopadhyay AS, Kundu S, Mandal S. Ganglion Cyst of Knee from Hoffa’s Fat Pad Protruding Anterolaterally Through Retinacular Rent: A Case Report. J Orthop Case Rep 2015; 5(3): 69-71.
[17] Nikolopoulos I, Krinas G, Kipriadis D, Ilias A, Giannakopoulos A, Kalos S. Large infrapatellar ganglionic cyst of the knee fat pad: a case report and review of the literature. J Med Case Reports 2011; 5: 351.
