Nanotechnology for Stimulating Osteoprogenitor Differentiation

A. Ibrahim1, 2, 3, 4, *, N.W. Bulstrode1, 2, I.S. Whitaker3, 4, D.M. Eastwood1, D. Dunaway1, 2, P. Ferretti2
1 Department of Plastic Surgery, Great Ormond Street Hospital For Children NHS Trust, London, UK
2 Stem Cell and Regenerative Medicine Section, UCL Great Ormond Street Hospital Institute of Child Health, University College London, UK
3 Reconstructive Surgery and Regenerative Medicine Research Group, The Welsh Centre for Burns & Plastic Surgery, Swansea, UK
4 European Centre of Nano Health, Swansea University Medical School, Swansea, UK

Article Metrics

CrossRef Citations:
Total Statistics:

Full-Text HTML Views: 704
Abstract HTML Views: 502
PDF Downloads: 117
ePub Downloads: 117
Total Views/Downloads: 1440
Unique Statistics:

Full-Text HTML Views: 461
Abstract HTML Views: 273
PDF Downloads: 92
ePub Downloads: 97
Total Views/Downloads: 923

© Ibrahim et al.; Licensee Bentham Open

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution-Non-Commercial 4.0 International Public License (CC BY-NC 4.0) (, which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Royal College of Surgeons Research Training Fellow, Stem Cell and Regenerative Medicine Section, UCL GOS Institute of Child Health, 30 Guilford Street, London WC1N 1EH, UK; Tel: (+44) 020 7905 2715; Fax: (+44) 020 7905 2953; E-mail:



Bone is the second most transplanted tissue and due to its complex structure, metabolic demands and various functions, current reconstructive options such as foreign body implants and autologous tissue transfer are limited in their ability to restore defects. Most tissue engineering approaches target osteoinduction of osteoprogenitor cells by modifying the extracellular environment, using scaffolds or targeting intracellular signaling mechanisms or commonly a combination of all of these. Whilst there is no consensus as to what is the optimal cell type or approach, nanotechnology has been proposed as a powerful tool to manipulate the biomolecular and physical environment to direct osteoprogenitor cells to induce bone formation.


Review of the published literature was undertaken to provide an overview of the use of nanotechnology to control osteoprogenitor differentiation and discuss the most recent developments, limitations and future directions.


Nanotechnology can be used to stimulate osteoprogenitor differentiation in a variety of way. We have principally classified research into nanotechnology for bone tissue engineering as generating biomimetic scaffolds, a vector to deliver genes or growth factors to cells or to alter the biophysical environment. A number of studies have shown promising results with regards to directing ostroprogenitor cell differentiation although limitations include a lack of in vivo data and incomplete characterization of engineered bone.


There is increasing evidence that nanotechnology can be used to direct the fate of osteoprogenitor and promote bone formation. Further analysis of the functional properties and long term survival in animal models is required to assess the maturity and clinical potential of this.

Keywords: Nanofibre, Nanomaterials, Nanoparticles, Nanoscaffolds, Nanotechnology, Osteogenic differentiation, Osteoprogenitor cells.


Bone is the second most transplanted tissue after blood with 2.2 million bone grafts performed annually [1]. Correction of congenital critical sized bone defects (e.g. midface hypoplasia in Treacher Collins syndrome) or acquired skeletal defects (e.g. due to trauma or neoplasia) often require the use of vascularized or non vascularized bone grafts with/without associated soft tissue. Reconstruction of bone defects with foreign body implants (either used as a prosthesis or as a scaffold for bone growth) contains the risk of infection, extrusion and inability to grow or fully integrate with the rest of the skeleton. Whilst, autologous bone transfer bypasses many of the complications associated with foreign body implants, there is the risk of absorption and donor-site morbidity. There is also a limit to the amount of tissue that can be harvested. Due to the risks and limitations of reconstruction of defects with foreign body implants and autologous bone transfer, tissue engineering provides the promise of generating autologous bone tissue without many of the limitations and morbidities associated with the gold standard treatment.

Osteoprogenitor cells are stem cells capable of differentiation down the osteogenic lineage into osteoblasts [2]. They can be derived from mesenchymal stem cells (MSC) found in a variety of endogenous locations including the bone, bone marrow, periosteum, adipose and even muscle, which are capable of differentiation along the adipogenic, chondrogenic and osteogenic line (Fig. 1). Although they express the general markers of pluripotency such as CD44, CD90, CD105 and CD166 [3, 4], the sub-populations that have greatest osteoprogenitor potential have been shown to also express STRO-1, SB-10 and HOP-26 [3-5]. Other sources of osteoprogenitor cells include embryonic [6], amniotic fluid [7] and induced pluripotent stem cells [8]. In order for new bone formation to occur, osteoprogenitor cells must be recruited through a complex and highly regulated interplay between signalling from the systemic and local biomechanical as well as biophysical environment [9] (Fig. 2). These signals co-ordinate activation and maturation of the osteoprogenitor cells giving rise to osteoblasts which in turn produce and lay down the extracellular bone matrix [10]. Additionally, the role of the musculoskeletal unit (bone-tendon-muscle) provides an important biomechanical stimulus which regulates normal bone development and maintenance [11]. Differentiated bone is characterized by upregulation of genes and protein expression of early markers such as collagen I and alkaline phosphatase (ALP) and late markers such as osteopontin (OSP) and osteonectin (OSC). Alkaline Phosphatase (ALP) enzyme activity is frequently used in assays to verify bone formation. Also the amount and pattern of calcium deposition (mineralization), extracellular matrix composition and mechanical properties can be used to demonstrate the stage and maturity of the osteogenesis.

Fig. (1). Osteoprogenitor cell sources
Embryonic, foetal and adult tissues can give rise to multipotent/pluripotent stem cells from which osteoprogenitor cells can be derived.

As a tissue, bone is complex as it has a mechanical, haemopoeitic and metabolic functions. It provides structure and protection to surrounding soft tissues and is necessary for metabolic regulation of calcium and phosphate as well as haemopoeisis. Additionally, the structure and function for each bone is highly site-specific and related to its embryological origin as well as its ability to adapt (e.g. the weight-bearing long bones which are of mesenchymal origin and facilitate locomotion compared with the neural-crest derived flat bones of the face which provide support and structure). Bone is composed of a cellular and acellular component [2]. The latter constitutes 80% of the overall bone mass. Osteoblasts, osteocytes, osteoclasts and osteoprecursor/osteoprogenitor cells comprise the cellular constituents [12]. There is extensive cross-talk between these cells which in concert regulate bone remodeling [13] (Fig. 2). Osteoblasts promote bone formation and mature into osteocytes which act as mechanosensors, control mineral haemostasis and regulate both osteoclast and osteoblast function [14]. This provides a balance between osteoblast mediatied bone formation and osteoclastic resorption in response to the environment. The acellular components are predominantly collagen I and extracellular matrix proteins as well as minerals such as hydroxyapatite. The acellular components together provide a scaffold to support cells structurally as well as facilitate their growth, proliferation, differentiation and signalling. Due to the multifunctional nature of bone, it is also richly vascularised. Any attempt at bone tissue engineering must therefore address the multipurpose nature of bone and its metabolic requirements as well as its complex structure.

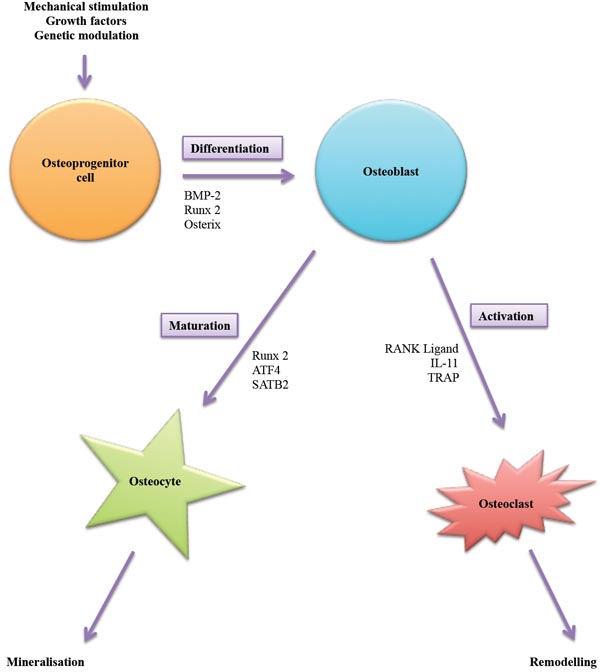

Fig. (2). Osteoprogenitor differentiation and accompanying gene expression
