Fixation of Acute Distal Biceps Tendon Ruptures Using Mitek Anchors: A Retrospective Study



M. Al-Taher1, Diederick B. Wouters*, 2
1 Maastricht University Medical Center, P. Debyelaan 25, 6229 HX Maastricht, The Netherlands
2 Medical Centre Amstelveen, Burg. Haspelslaan 131, 1181NC Amstelveen, The Netherlands


Article Metrics

CrossRef Citations:
0
Total Statistics:

Full-Text HTML Views: 2031
Abstract HTML Views: 962
PDF Downloads: 241
Total Views/Downloads: 3234
Unique Statistics:

Full-Text HTML Views: 989
Abstract HTML Views: 594
PDF Downloads: 171
Total Views/Downloads: 1754



© Al-Taher and Wouters; Licensee Bentham Open.

open-access license: This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.5/) which permits unrestrictive use, distribution, and reproduction in any medium, provided the original work is properly cited.

* Address correspondence to this author at the Medical Centre Amstelveen, Burg. Haspelslaan 131, 1181NC Amstelveen, The Netherlands; Tel: 0031653284625; E-mail: d.b.w.md@zonnet.nl


Abstract

Purpose of this Study:

The aim of this study was to evaluate the outcomes of surgical intra-osseous fixation of the distal tendon of the ruptured biceps brachii muscle using Mitek anchors.

Materials and Methods:

Between 2005 and 2011, seven patients underwent unilateral distal biceps tendon repair using Mitek anchors. All patients were men aged between 36 and 47 years. Six patients were assessed by physical examination and use of the Disabilities of the Arm, Shoulder, and Hand (DASH) questionnaire.

Results:

Surgery was performed within 3 to 17 days of rupture with a mean follow-up of 35 months. Of the six fully completed DASH questionnaires, three patients had a score of 0, and three patients had scores of 5.8, 10 and 10.8, respectively (10.1 is the mean score for the general population). Transient paraesthesias in the lateral antebrachial cutaneous nerve region occurred in two patients and one patient experienced a transient stiffness of the elbow due to scarring of the wound. No major complicatons have occurred.

Conclusion:

The use of Mitek anchors for the re-insertion of the ruptured distal biceps tendon proved to be a safe and effective technique with excellent functional results in our series.

Keywords: : Bone anchors, DASH score, distal biceps tendon ruptures, Mitek anchors, single incision technique, surgical treatment..



INTRODUCTION

Ruptures of the distal biceps brachii tendon are uncommon and occur in approximately 1.2 per 100,000 persons. They usually occur in the dominant arm of men between 40 and 60 years of age who experienced a traumatic event in which an extension force is applied to an elbow in flexion. If unrepaired, the patient will experience weakness associated with supination of the arm and flexion of the elbow. Surgical repair is the gold standard in active patients [1-3]. Several surgical techniques have been described for the repair of the distal biceps brachii tendon, all with comparable biomechanical results and clinical outcomes [4-6].

Repair of a distal biceps tendon rupture is a challenging procedure with no consensus as to which technique should be used [7].

The purpose of this study is to evaluate the clinical results of seven consecutive patients who underwent an intra-osseous distal biceps tendon repair using Mitek anchors (DePuy Mitek inc. Warsaw, USA).

MATERIALS AND METHODS

Between July, 2005, and November, 2011, seven consecutive male patients underwent distal biceps tendon repair performed by a single trauma surgeon. The mean age of patients was 42 years (range 36-47).

Six patients consented for final assessment by the same surgeon. The time interval between injury and surgery, duration of surgery, length of hospital stay, and post-operative complications were noted. Functional results were assessed using the Disabilities of the Arm, Shoulder, and Hand (DASH) questionnaire and range of motion measurement. The DASH questionnaire is a self-administered, region-specific outcome instrument developed as a measure of self rated upper extremity disability and symptoms. The DASH questionnaire, is a validated outcomes tool consisting of a 30-item disability/symptom scale, with a score of 0 reflecting no disability and 100 reflecting severe disability [8].

Operative Technique

Surgery was performed in the supine position under general anaesthesia and a bloodless field. A lazy ‘S’-shaped single incision over the antecubital fossa was made and the torn biceps tendon was identified. Preparation was continued along the natural tunnel of the tendon to the radial tuberosity. Four unicortical holes were made at the site of the footprint followed by the creation of a hatch in the first bone cortex between the four holes using an osteotome (Fig. 1). A Mitek drill bit was used to create holes in the opposite cortex, into which Mitek anchors were placed (Fig. 2). Finally, the tendon was fixed within the hole by tying the sutures according to the Bunnell technique (Fig. 3). The soft tissues were closed in layers with Vicryl® (Ethicon, Hamburg, Germany) and skin with Monocryl® (Ethicon, Hamburg, Germany) intra-cutaneously.

Fig. (1).

Four unicortical drill holes were made at the site of the footprint in the cortex followed by creating a hatch between the four holes using an osteotome.

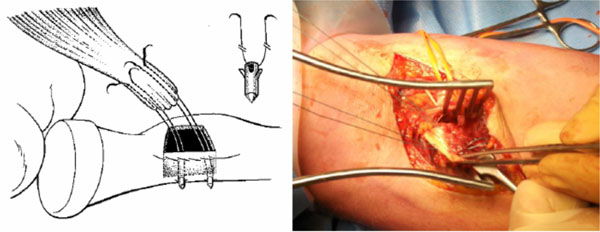

Fig. (2).

Two drill holes were made in the opposite cortex using the Mitek drill bit and the Mitek anchors were inserted in the holes.

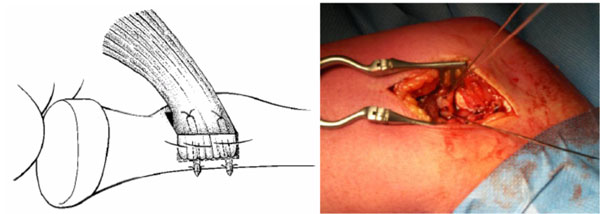

Fig. (3).

The tendon was fixed by tying the Bunell stitches of the Mitek anchors, fixed in the dorsal bone cortex.


Postoperatively, the elbow was immobilised in a plaster in 90 degrees flexion and in a neutral position between supination and pronation for 5 weeks. Thereafter, active, low demand exercises were started. After 3 months, loading of the tendon-bone complex was gradually increased and 6 months post-operatively full loading of the elbow was permitted.

RESULTS

In six patients, the time interval between injury and surgery ranged from 3 to 17 days. In one patient, the time between injury and surgery could not be retrieved. The mean duration of surgery was 65 minutes (range 51-80 minutes). Five patients were discharged on the same day of surgery. The two remaining patients were discharged one and 2 days following surgery, respectively (Table 1).

Table 1.

Patient Demographics and Clinical Data


No. Age Sex Time Between Injury and Surgery (Days) Follow-Up (Months) Duration of Surgery (Min) Hospital Stay (Days)
1 47 Male 3 18 62 2
2 36 Male 4 44 52 1
3 39 Male 12 8 70 1
4 38 Male Missing 84 77 3
5 43 Male 17 65 63 1
6 45 Male 12 9 80 1
7 46 male 7 15 51 1

Six patients fully completed and returned the DASH questionnaire. Three patients had a DASH score of 0, one patient had a DASH score of 5.8, one patient a DASH score of 10, and one patient had a DASH score of 10.8.

At the final post-operative follow-up, five patients had a full range of motion in four directions at their elbow and one patient had an extension deficit of 18 degrees and a supination deficit of 15 degrees. One patient was lost to follow-up.

Six patients consented to undergo an MRI scan of their affected elbow. In two of these patients, imaging through MRI could not be performed due to claustrophobia and a cardiac pacemaker, respectively. In the remaining four patients, the fixed tendon through the bone cortex was in place with evident ingrowth of the tendon in the surrounding bone. No heterotopic ossification was observed. Fig. (4) shows the tendon against the cortical bone and partly in the cortex incorporated, in the medullary cavity the bone marrow is seen. In Fig. (5), the next MRI slice, the full integration of the tendon in the cortical bone is depicted. A trace of fluid around one anchor is found. In Fig. (6), the next slice, only the 2 anchors are shown, the tendon is not visible anymore.

Fig. (4-6).

The full integration of the tendon is depicted in this MRI.


Complications

No major complications have occurred. Two patients experienced transient paraesthesias in the lateral antebrachial cutaneous nerve region and one patient experienced stiffness of the elbow due to scarring of the wound, which resolved completely after vigorous physical therapy.

DISCUSSION

Surgical repair is the method of choice to restore flexion and supination strength to the elbow and forearm after acute rupture of the distal biceps tendon. In the absence of repair, decreases in strength of 20% to 30% for flexion, and up to 40% for supination, can be expected [9-11].

The key findings of this study are the undisturbed ingrowth of all the re-inserted tendons noted in the original radius footprint and the full return of function in all patients except for one patient who experienced a minor supination and extension deficit. The intraosseous repair procedure, demonstrated in our study is comparable with the femoral insertion of a hamstrings graft during Anterior Cruciate Ligament repair [12]. Our technique led to a full integration of the tendon in all four patients in which MRI investigation could be performed.

The DASH questionnaire is a validated scoring system that can detect and differentiate small and large changes in disability over time after surgery in patients with upper extremity musculoskeletal disorders. It was used as the primary outcome measurement tool in this study, but not before the reconstruction, which can be seen as a limitation of this study. A 10-point difference in mean DASH score should be considered a clinically insignificant change [8]. Hunsaker et al. reported that the mean DASH score for the general population is 10.1 [13]. The results of our study, with DASH scores ranging from 0 and 10.8 (mean less than 4.9), demonstrate excellent functional outcomes.

Using the two-incision technique, the most frequent reported complication is persistent injury to the lateral antebrachial cutaneous nerve [6]; other complications, such as loss of range of motion, heterotopic ossification, and persistent elbow pain, are also reported. The use of Mitek anchors allows fixation via a single incision approach, thereby reducing the risk of complications compared to the two-incision technique. However, two out of seven patients in our series experienced a transient paraesthesia of the lateral antebrachial cutaneous nerve due to traction neuropraxy caused by the wound retractor placement during surgery. This is acknowledged as a limitation of the success of this technique. A quantification of the likelihood of transient paraesthesia occurring from this technique would require a larger sample size; however, recruiting an appropriate number of patients for a larger study is challenging due to the low incidence of distal biceps tendon rupture.

CONCLUSION

Intraosseous repair of complete distal biceps tendon ruptures using Mitek anchors is a technique that leads to excellent functional outcomes in our series. Transient nerve impairment was noted as a potential, short term, complication. Further studies employing larger sample sizes are warranted to confirm these findings.

CONFLICT OF INTEREST

The authors confirm that this article content has no conflict of interest.

ACKNOWLEDGEMENTS

Declared none.

REFERENCES

[1] Sigmundsson FG, Olafsson AH, Ingvarsson T. Repair of distal biceps brachii tendon ruptures: long term retrospective follow-up for two-incision technique Laeknabladid 2009; 95(1): 19-24.
[2] Peeters T, Ching-Soon NG, Jansen N, Sneyers C, Declercq G, Verstreken F. Functional outcome after repair of distal biceps tendon ruptures using the endobutton technique J Shoulder Elbow Surg 2009; 18(2): 283-7.
[3] Patterson RW1, Sharma J, Lawton JN, Evans PJ. Distal biceps tendon reconstruction with tendoachilles allograft: a modification of the endobutton technique utilizing an ACL reconstruction system J Hand Surg Am 2009; 34(3): 545-2.
[4] Bain GI, Prem H, Heptinstall RJ, Verhellen R, Paix D. Repair of distal biceps tendon rupture: a new technique using the Endobutton J Shoulder Elbow Surg 2000; 9(2): 120-6.
[5] Widmer BJ, Tashjian RZ. Treatment of distal biceps tendon ruptures Am J Orthop (Belle Mead NJ) 2010; 39(6): 288-96.
[6] El-Hawary R1, Macdermid JC, Faber KJ, Patterson SD, King GJ. Distal biceps tendon repair: comparison of surgical techniques J Hand Surg Am 2003; 28(3): 496-502.
[7] Grégory T1, Roure P, Fontès D. Repair of distal biceps tendon rupture using a suture anchor: description of a new endoscopic procedure Am J Sports Med 2009; 37(3): 506-11.
[8] Gummesson C1, Atroshi I, Ekdahl C. The disabilities of the arm, shoulder and hand (DASH) outcome questionnaire: longitudinal construct validity and measuring self-rated health change after surgery BMC Musculoskelet Disord 2003; 4: 11.
[9] Baker BE, Bierwagen D. Rupture of the distal tendon of the biceps brachii. Operative versus non-operative treatment J Bone Joint Surg Am 1985; 67(3): 414-7.
[10] Cohen MS. Complications of distal biceps tendon repairs Sports Med Arthrosc 2008; 16(3): 148-53.
[11] Morrey BF, Askew LJ, An KN, Dobyns JH. Rupture of the distal tendon of the biceps brachii. A biomechanical study J Bone Joint Surg Am 1985; 67(3): 418-21.
[12] Paulos L, Greenwald A. Endoscopic ACL Reconstruction - Mitek Anchor Surgical Technique Surg Technol Int 1994; 3: 571-6.
[13] Hunsaker DM1, Thorne LB. Suicide by blunt force trauma Am J Forensic Med Pathol 2002; 23(4): 355-9.
