Comparison of Radiographic and Ultrasonographic Findings of Medial Elbow Laxity in High School Baseball Players

1. INTRODUCTION

Valgus stress radiography, for which the force can be applied manually [1], with a Telos device [2-8], or by gravity [1, 5, 9, 10], has been reported as a quantitative means of assessing medial elbow laxity. Recently, ultrasonography was used to assess medial elbow laxity [11-18]. However, the correlation between ultrasonographic and radiographic assessments has not been examined yet. It was hypothesized that ultrasonography, similar to radiography, would be useful for assessing medial elbow laxity. The aims of this study were to assess medial elbow laxity in high school baseball players using ultrasonography and radiography, to investigate the correlation between ultrasonographic and radiographic assessments, and to address the usefulness of ultrasonography.

2. MATERIALS AND METHODS

A prospective cohort study was conducted to assess medial elbow laxity. Institutional review board approval was obtained prior to starting the study, and informed consent was obtained from all subjects. A medical examination of the elbow was performed after the fall baseball season had ended for all high school baseball teams in the city, and the coach of each team selected two players on the team, mostly pitchers, to participate in the medical examination. The subjects in this study were 32 male high school baseball players who underwent a medical examination of the elbow in two hospitals, where two orthopedic surgeons performed ultrasound imaging of the medial aspect of the elbow. The 32 subjects underwent both valgus stress ultrasonography and valgus stress radiography, with force applied by gravity. The participants were aged between 15 and 18 years (mean, 16.0 years). Twenty-seven subjects had medial elbow pain when throwing, 27 had difficulty in pitching, and 15 had a positive moving valgus stress test [19].

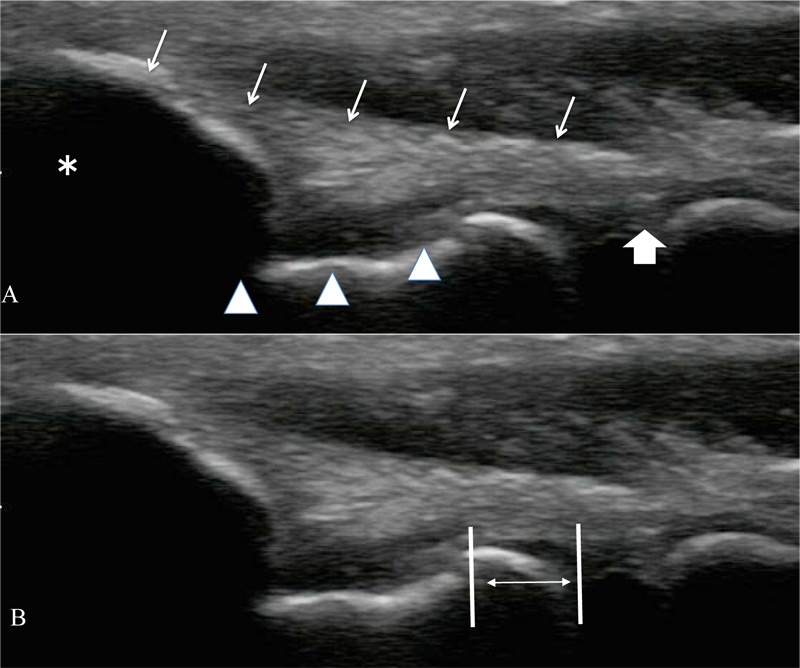

For both ultrasonography and radiography, subjects were placed supine on a table with the shoulder in 90 degrees of abduction, and a valgus force was applied to the elbow via stress from gravity to assess medial elbow laxity. Ultrasound imaging of the medial aspect of the elbow was performed by 2 of the authors (M.T. and M.H.), both orthopedic surgeons with more than 10 years of experience in diagnosing throwing elbow injuries by ultrasonography. The ultrasound imaging was also performed using a 10-MHz annular array transducer (Hitachi, Hivision Avius, Tokyo, Japan). For ultrasonographic examinations, as described in Sasaki et al.’s [16] report, subjects were placed supine on a table with the shoulder at 90 degrees of abduction and externally rotated, the elbow at 90 degrees of flexion, and the forearm in a neutral position, while the coronal aspect of the medial elbow was imaged (Fig. 1). The horizontal distance between the distal-medial corner of the trochlea and the proximal edge of the medial tubercular portion of the coronoid process was measured, and this measurement was considered to be the Medial Joint Space (MJS) of the elbow (Fig. 2). For measurement of the MJS, the ultrasonographic images were enlarged to electronically obtain MJS measurements that were accurate to within 0.1 mm (Hitachi, Hivision Avius, Tokyo, Japan). For radiographic assessments, as described in a previous report [5], subjects were placed supine on a table with the shoulder at 90 degrees of abduction and externally rotated, the elbow at 60 degrees of flexion, and the forearm in a neutral position, while anteroposterior radiographs were obtained (Fig. 3). A polystyrene foam frame was placed under the upper arm proximal to the elbow so that a valgus force was easily applied via stress from gravity. The shortest distance between the most distal point on the curved contour of the medial epicondyle and the ulnar coronoid process was measured, and this measurement was considered to be the MJS (Fig. 4). The anteroposterior radiographs were enlarged to obtain MJS measurements accurate to within 0.01 mm using software (Vox-Base, J-mac system, Sapporo, Japan). The MJS measurement of both ultrasonography and radiography was performed once. For both ultrasonography and radiography, the MJS on the throwing side was compared with that on the non-throwing side, and the increase in the MJS on the throwing side was determined.

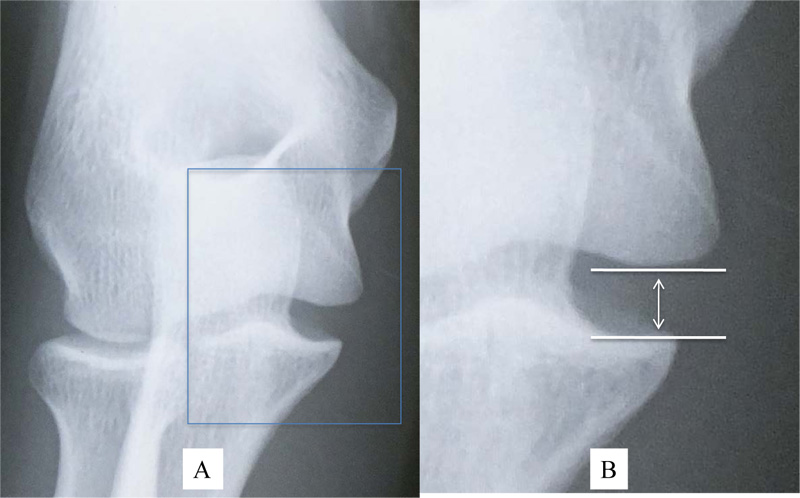

First, ultrasonography was performed. Second, radiography was performed without knowledge of the results of the ultrasonography. Finally, without knowledge of the results of the ultrasonography and radiography, the presence of medial elbow pain or difficulty pitching was questioned, and the moving values stress test was performed. The correlation between the MJS on ultrasonographic and radiographic assessments, and the correlation between the increase in the MJS on ultrasonographic and radiographic assessments were investigated. Additionally, ulnar collateral ligament (UCL) injury was considered to be present when the following three conditions were met: (1) medial elbow pain, (2) difficulty in pitching, and (3) a positive result on the moving valgus stress test. UCL injury (the basis for defining the UCL injury group) was found in 14 subjects. The increase in the MJS between the UCL injury group and the non-UCL injury group on ultrasonographic and radiographic assessments was compared to determine the usefulness of each assessment for the diagnosis of UCL injury.

3. RESULTS

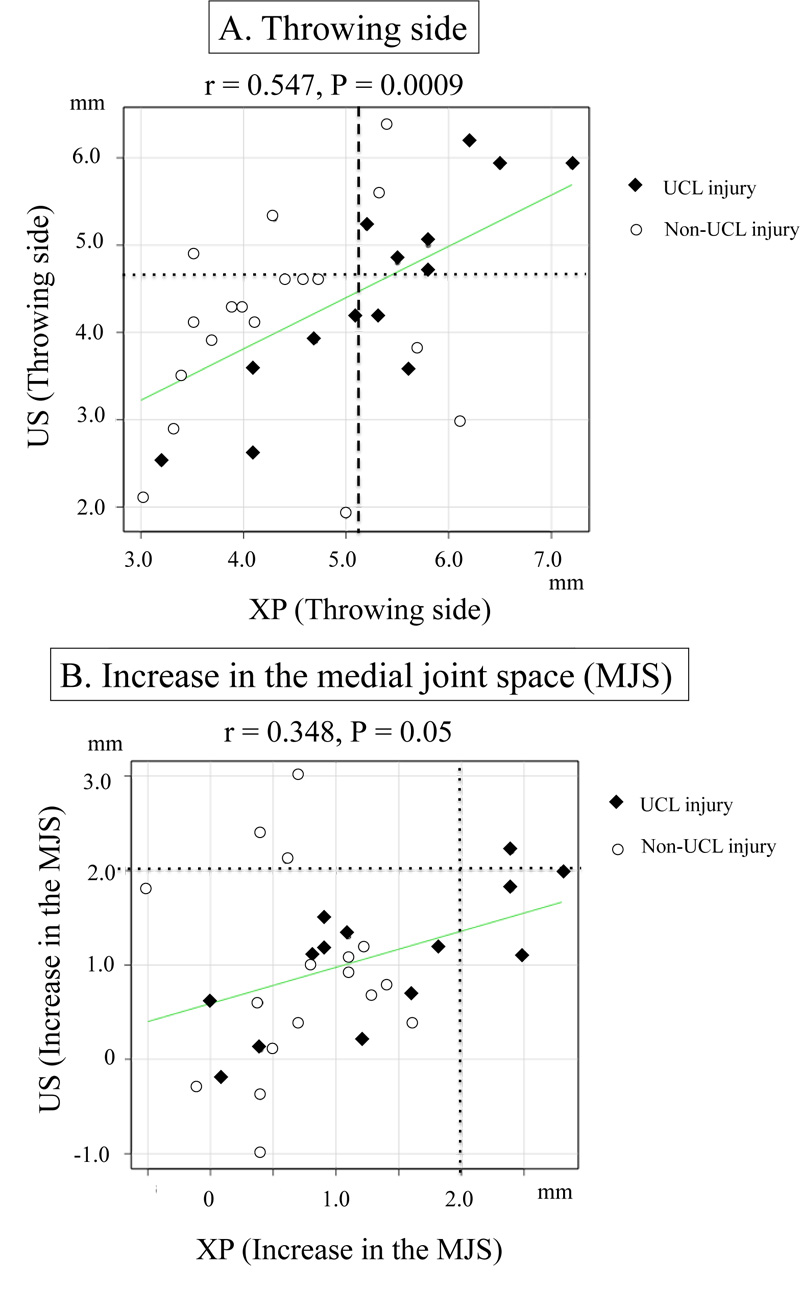

The ultrasonographic assessments showed that the mean MJS was 4.2±0.9 mm (range, 1.9–6.4 mm) on the throwing side and 3.3±1.0 mm (range, 1.1–5.2 mm) on the non-throwing side and that the mean increase in the MJS of the throwing side was 0.9±0.5 mm (range, -1.0–3.0 mm) (P<0.01). The radiographic assessments showed that the mean MJS was 4.8±0.8 mm (range, 3.0–7.2 mm) on the throwing side and 3.8±1.1 mm (range, 2.1–5.7 mm) on the non-throwing side and that the mean increase in the MJS of the throwing side was 1.0±0.6 mm (range, -0.5–2.8 mm) (P<0.01). For the MJS of the throwing side, a moderate correlation was found between the ultrasonographic and radiographic measurements (correlation coefficient=0.547, P=0.0009) (Table 1, Fig. 5a). Furthermore, a weak correlation tended to be found for the increase in the MJS of the throwing side (correlation coefficient=0.348, P=0.0505), although it was not significant (Table 1, Fig. 5b).

The ultrasonographic assessment showed that the mean MJS of the throwing side was 4.5 mm (range, 2.5–6.2 mm) in the UCL injury group and 4.1 mm (range, 1.9–6.4 mm) in the non-UCL injury group. No difference was found in the ultrasonographic assessments of the MJS of the throwing side between the UCL injury and non-UCL injury groups (P=0.374). Although no statistically significant cut-off value could be obtained, the MJS of the throwing side with the highest specificity (0.778) and sensitivity (0.5) was 4.7 mm (Fig. 5a). The AUC of the ROC curves for UCL injury was 0.591 (95% confidence interval: 0.384-0.799). Additionally, the mean increase in the ultrasonographic assessment of the MJS of the throwing side was 1.0 mm (range, -0.2–2.2 mm) in the UCL injury group and 0.9 mm (range, -1.0–3.0 mm) in the non-UCL injury group. No difference was observed in the increase in the MJS between the UCL injury and non-UCL injury groups on ultrasonographic assessments (P=0.69). UCL injury was found in 2 out of 5 subjects with an MJS increase of 2.0 mm or more, whereas UCL injury was found in 12 out of 27 subjects with an MJS increase of 2.0 mm or less. There was no difference in the frequency of UCL injury between those patients with an increase of 2.0 mm or more in the MJS and those with an increase of 2.0 mm or less on ultrasonographic assessments (P=0.99) (Table 2).

The radiographic assessment showed that the mean MJS of the throwing side was 5.3 mm (range, 3.2–7.2 mm) in the UCL injury group and 4.1 mm (range, 3.0–6.1 mm) in the non-UCL injury group. The MJS of the throwing side in the UCL injury group was significantly increased compared to that of the non-UCL injury group (P=0.0068), and the cut-off value was 5.1 mm (specificity: 0.778, sensitivity: 0.714) (Fig. 5a). The AUC of the ROC curves for UCL injury was 0.770 (95% confidence interval: 0.596-0.944). Additionally, on the radiographic assessments, the mean increase in the MJS of the throwing side in the UCL injury group was 1.4 mm (range, 0–2.8 mm), and that in the non-UCL injury group was 0.7 mm (range, -0.5–1.6 mm). The increase in the MJS of the throwing side in the UCL injury group was significantly greater than that in the non-UCL injury group (P=0.02). UCL injury was found in all 4 of the subjects who had an increase of 2.0 mm or more in the MJS, whereas UCL injury was found in 10 out of the 28 subjects who had an increase of 2.0 mm or less in the MJS. Statistical analysis showed that a significantly greater number of subjects with an increase of 2.0 mm or more in the MJS of the throwing side had a UCL injury (P<0.05) (Table 2).

4. DISCUSSION

In this study, the MJS of the throwing side showed a moderate correlation between the ultrasonographic and radiographic measurements, and the increase in the MJS of the throwing side exhibited a tendency toward a weak correlation, although it was not significant. These results suggest that ultrasonography, similar to radiography, is useful for assessing medial elbow laxity. This is the first study to suggest the usefulness of ultrasonography to assess medial elbow laxity in comparison with radiographic findings. The following two factors may have affected comparisons between ultrasonographic and radiographic assessments. Regarding the degree of elbow flexion, the elbow was in 60 degrees of flexion on radiographic assessment, whereas the elbow was in 90 degrees of flexion on ultrasonographic assessment. Regarding the measurement of the MJS, the shortest distance between the most distal point on the curved contour of the medial epicondyle and the ulnar coronoid process was measured on radiographic assessment, whereas the medial edge of the ulnohumeral joint was measured on ultrasonographic assessment. It is possible that the differences in these conditions might influence the correlation between ultrasonographic and radiographic assessments.

Regarding the usefulness of radiographic assessments for detecting UCL injury, the MJS of the throwing side in UCL injury group (mean 5.3 mm) was significantly increased compared to that in the non-UCL injury group (mean 4.1 mm), and the increase in the MJS of the throwing side in the UCL injury group (mean 1.4 mm) was significantly increased compared to that in the non-UCL injury group (mean 0.7 mm). Additionally, a significantly greater number of subjects with an increase in the MJS of 2.0 mm or greater had UCL injury. These results suggest that valgus stress radiography, via gravity, is useful for the diagnosis of UCL injury. In previous studies, medial elbow laxity was assessed using valgus stress radiography, which can be conducted either manually [1], with a Telos device [2-8], or by gravity [1, 5, 9, 10]. Another previous study also reported that, in 38 (88%) out of 43 subjects who underwent UCL reconstruction, the increase in the MJS of the throwing side was 2.0 mm or more [20]. This and previous studies suggest that, in high school baseball players, an increase of 2 mm or more in the MJS of the throwing side was assessed as pathological medial elbow laxity, that is, medial elbow instability. However, on radiographic assessments, UCL injury was found to be present in 10 out of 28 subjects with an increase in the MJS of 2.0 mm or less. It was speculated that in cases with an increase in the MJS of 2.0 mm or less, the degree of UCL injury was slight, and, in subjects with UCL injury with an increase in the MJS of 2.0 mm or less, the period between the onset of symptoms and the medical examination was short.

In the radiographic assessment, a 5.1-mm cut-off value for the MJS of the throwing side for UCL injury had moderate accuracy because the AUC was 0.770, but the MJS of the throwing side is easily affected by body size. On the other hand, an increase in the MJS on the throwing side was not affected by body size, because the increase in the MJS was the difference between the MJS on the throwing side and that on the non-throwing side. Therefore, in the diagnosis of UCL injury, it is valid to use the increase in the MJS on the throwing side.

In this study, the ultrasonographic assessment of the MJS was correlated with the radiographic assessment, whereas the ultrasonographic assessment was not correlated with UCL injury. Because the medial edge of the ulnohumeral joint was measured on ultrasonography, the MJS may have been underestimated when an osteophyte was present on the medial edge of the ulna. Additionally, the ultrasonographic images were in cross-sections, and the evaluation depended on the image in the section that the examiner had assessed. In this study, only the MJS was measured and compared between ultrasonographic and radiographic assessments. However, ultrasonography has advantages for assessing not only the MJS but also the midsubstance of the UCL; thus, ultrasonography could be an effective supplemental tool for the diagnosis of UCL injury.

This study had several limitations. The first limitation is that the MJS measurement of both ultrasonography and radiography were performed only once. Although intra- and interobserver reliability of ultrasonography [16] and radiography [5] have been confirmed by the previous studies, the reliability of ultrasonography and radiography were not confirmed in this study. Second, there is the possibility of bias in the measurement of the MJS because two orthopedic surgeons performed ultrasound imaging of the elbow in two hospitals. That is, one orthopedic surgeon performed ultrasound imaging for half of the 32 subjects in one hospital, and the other surgeon performed imaging for the remaining half in another hospital. However, the bias was not considered to be high because both orthopedic surgeons had more than 10 years of experience in diagnosing throwing elbow injuries by ultrasonography. Finally, this study had a very small sample size. According to the results of a posthoc power analysis of the outcome, the power was 0.2633. Further investigations with large study populations and comparisons of two groups will be needed.

CONCLUSION

Medial elbow laxity in 32 high school baseball players was assessed to investigate the correlation between ultrasonographic and radiographic assessments, as well as the usefulness of ultrasonography. A moderate correlation was found between the ultrasonographic and radiographic assessments of the MJS of the throwing side. Furthermore, a weak correlation tended to be found for the increase in the MJS, although it was not significant. These results suggest that ultrasonography, similar to radiography, is useful for assessing medial elbow laxity. The comparison of radiographic assessments between the UCL injury and non-UCL injury groups also showed a significant intergroup difference in both the MJS of the throwing side and the increase in the MJS, although no difference was found using ultrasonography. These results suggest that radiography is useful for diagnosing UCL injury.
